AFC

Automated fare collection (AFC) system means automatic payment way for public transportation channel such as bus or metro using RF(Radio frequency) contactless Tmoney card - an automated version of manual fare collection by cash. AFC system is generally classified into four levels as follows.

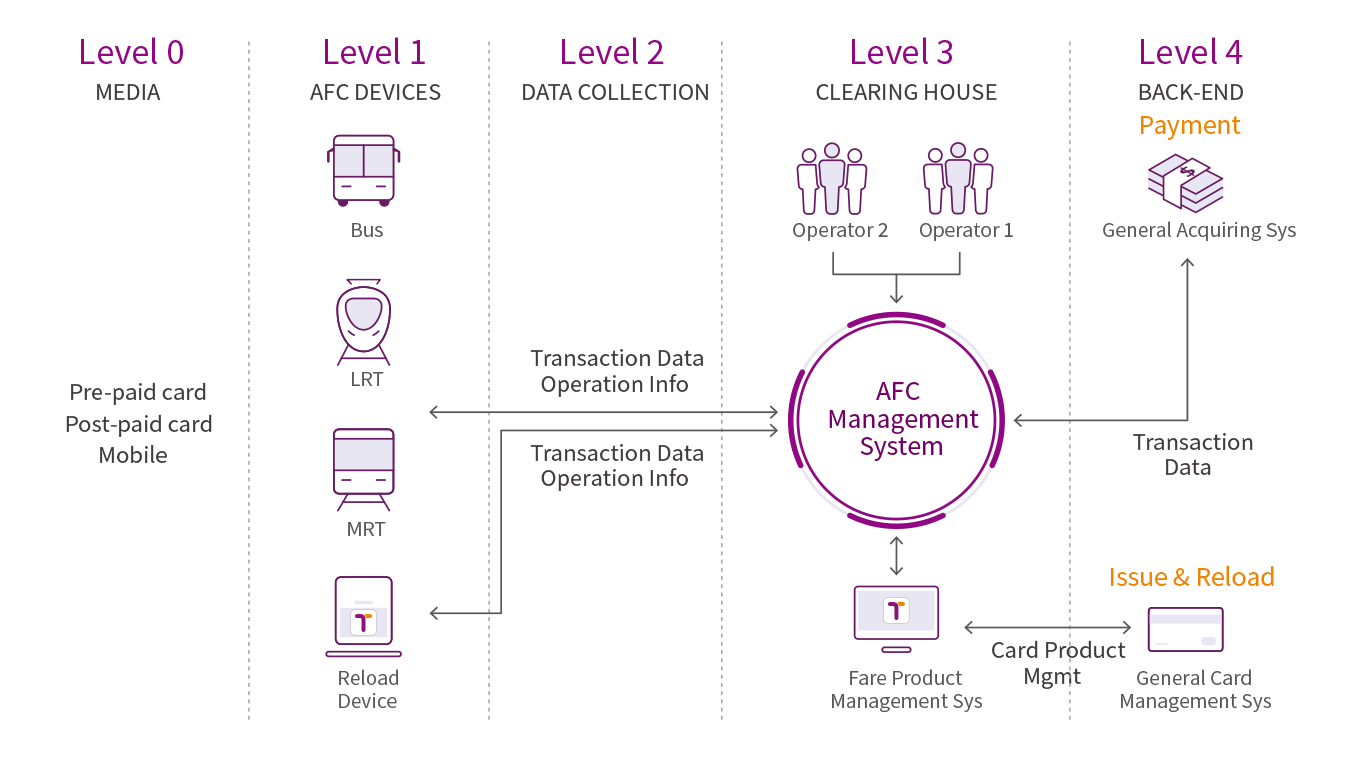

General Structure

  • Level 4(Center)
    Basic Information Management, Fare Management, Reload Management, Equipment Management, Administration, Transaction Data Process, Infrastructure

    Level4 is a data management system. It receives the reload, fare information from the transportation channel(bus/metro) and settles the received data. It also involves in not only managing devices, transaction history but also communicating with each layer to administer the necessary data.

  • Level 3(Center)
    Data Collection System

    A data collection system is situated in Level3. The transaction data is gathered by bus depots / metro stations and uploaded to the center system. The center system also transmit the data to each bus depot and metro stations.

  • Level 2(Device)
    Card Reader, Top-up Device

    Level2 is devices relating to the transportation channel(Bus/metro etc.) and the top-up. Bus drivers and passengers could utilize the devices for fare collection, top-up of the card balance, general bus operation and more. Card readers transmit/receive transaction/operation data by communicating with card layer and data collection system. A balance recharger enables the users to reload the card balance and make a payment. And both manual/automatic types are available. They transmit/receive transaction/operation data by communicating directly with each card and center system.

  • Level 1(Card Media)
    Card, Tmoney Card Management System

    Level 1 consists of two parts. A card which is a payment method and SCMS(Tmoney Card Management System) which manages whole life cycle of the Tmoney card. The card communicates with the card reader and stores the processed transaction data. SCMS supervises the entire operation of the card from generation to disposal.

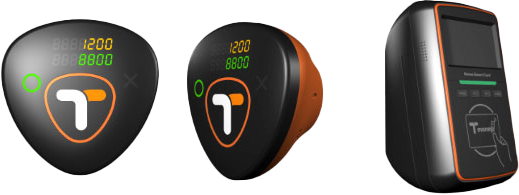

Bus validator

Transaction/Status data transmission : Operation data, Device F/W reception/Bus validator, Drive console, Wireless AP(Access Point), Bus colleting system, Settlement System Transaction/Status data transmission : Operation data, Device F/W reception/Bus validator, Drive console, Wireless AP(Access Point), Bus colleting system, Settlement System Transaction/Status data transmission : Operation data, Device F/W reception/Bus validator, Drive console, Wireless AP(Access Point), Bus colleting system, Settlement System
확대보기

Metro Device

Collecting system in each station, Settlement System Collecting system in each station, Settlement System

Expectancy Effects

Well designed and effectively implemented AFC sites that are being operated around the globe have proven to be beneficial to every stakeholder, be it the city government, citizens or the transport operator.

Smarter Government(Reflection on Transportation Policy)
  • Optimization of bus routes
  • Coordination of allocation interval
  • Supporting Scientific Public Transportation Policy-making
Increase of citizen’s convenience
  • Providing high-tech Tmoney card infra to passengers
  • Eliminating use of cash/note and long queue
  • Faster and convenient method of payment
Profit Increase for transport operators
  • Cost Reduction and revenue increase
  • Transparent revenue report
  • Scientific route management and optimal vehicle allocation
  • Reducing safety risks for drivers and providing stable operation
Bus Driver Console
Bus Driver Console
Bus Driver Console Bus Driver Console
Key Features

State-of-the-art Driver Console, upgraded version"Get the most intelligent driver console in your bus"

  • Intensive system for BMS/BIS/ITS
  • Internal GPS / Wifi Module
  • Multi-fare / Multi-boarding available
  • Wireless connected to passenger’s validator
  • MCU function embedded => Efficiency
  • Easy to handle by touch-screen
  • AFC/BMS function integrated
ITEM, Description Bus Driver Console table
ITEM Description
System AFC Part BMS Part
  • Linux OS
  • Coretex-A8 S5PV210 1GHz
  • SDRAM 512MB
  • NAND 1GB
  • Linux OS
  • Coretex-A8 S5PV210 1GHz
  • SDRAM 512MB
  • NAND 1GB
  • Micro SD 4GB
User Interface
  • 7.0”WVGA TFT LCD 800 X 480
  • Touch screen
  • 12 Push Buttons
  • Indicated LED (RED)
  • Speaker (1W X 2ea)
Connectivity (I/O)
  • 8 RS-232C Ports
  • 1 USB HOST 2.0 Port
  • 1 Ethernet RJ-45 Port
  • 2 Ethernet Circular Ports
  • 7 GPIO Ports
  • GPS- Ublox6
  • WLAN Dual Band - 802.11a/b/g/n
  • 7 RS-232C Ports
  • 1 USB HOST 2.0 Port
  • 1 Ethernet RJ-45 Port
  • 7 GPIO Ports
  • 1 Communication Modem I/O: GSM / WCDMA / GPRS
  • A/V IN/OUT Port
  • (RCA Jack Type)
  • Audio : Stereo
  • Video : Composite
Dimension 226x148.5x52.8mm
Power 24V, 2A
Bus Validator
Bus Validator Bus Validator
Key Features
  • Wireless connected with Driver Console
  • Save 80% of maintenance cost caused by cable(Wireless connected to driver console)
  • Automatic Error Console
  • Data loss control
  • Stand Alone mode available(Operate without Driver console)
  • Easy maintenance by remotely control(On/Off)
ITEM, Description Bus Validator table
ITEM Description
System
  • Linux OS
  • ARM9 32bit S3C2440 400MHz
  • SDRAM 128MB
  • NOR 8MB
  • NAND 1GB
  • 4.3”WQVGA TFT LCD 480 X272
  • Touch screen(option)
  • Indicated LED (RED,GREEN)
  • Speaker (1W X 2ea)
  • Buzzer
  • 1 RS-232C Ports
  • 1 USB HOST 1.1 Port
  • 1 Ethernet Port
  • (EXTERNAL : CIRCULAR TYPE)
RC531(Mifare,ISO 14443 type A/B )
User Interface SIM Type 7 slots
Connectivity(I/O) -20℃~60℃
Dimension 232x140x140mm(mounted the cradle)
Power 12V 2A
On Board TVM (Ticket Vending Machine)
On Board TVM <(Ticket Vending Machine) On Board TVM <(Ticket Vending Machine)
Key Features
  • Multi-function cash box which accepts bills, coins(one by one) and RF card
  • STN(Super Twisted Nematic) LCD display is applied to supportmulti languages
  • Heater built-in for climate adjustment (Optional)
  • Reference in Malaysia
ITEM, Description On Board TVM table
ITEM Description
System
  • ARM9 32bit S3C2440 400MHz
  • SDRAM 128MB
  • NOR 8MB
  • NAND 512MB
User Interface
  • Dots STN LCD 128X64 2ea
  • 2 Push Buttons(option)
  • LED "O(green)/X(red)"
  • Speaker (1W X 2ea)
  • Buzzer
Connectivity(I/O)
  • 2 RS-485 Ports
  • 3 RS-232C Ports
  • 1 ETM Power Port
RF Card Module RC531(Mifare,ISO 14443 type A/B)
Card Dispenser 200pcs
Bill Module 3 bills/sec
Coin Module 10 coins/sec
SAM SIM Type 6 slots
Dimension 280 x 320 x1000mm
Power 24V 3A
Top-up device (Manual type)
Top-up device (Manual type) Top-up device (Manual type)
Key Features
  • Proven in Korea and Colombia by its number of 60,000 units
  • Easy to install
  • Various communication module available (3G/PSTN)
  • Exclusive display for client
ITEM, Description Top-up device table
ITEM Description
System
  • ARM9 32bit S3C2440 400MHz
  • SDRAM 128MB
  • NOR 8MB
  • NAND 1GB
User Interface
  • 4.3”WQVGA TFT LCD 480 X272
  • 20 Push Buttons
  • Indicated LED (RED)
  • Speaker (1W X 2ea)
  • Buzzer
  • PRINT(2”Thermal)
Connectivity(I/O)
  • 1 RS-485 Ports(Option)
  • 2 RS-232C Ports
  • USB HOST 1.1 1 Port & 2.0(Option)
  • 1 Ethernet RJ-45 Port(TCP/IP)
  • PSTN
  • CDMA/GSM module (option)
RF Card Module RC531(Mifare,ISO 14443 type A/B)
SAM SIM Type 8 slots
Dimension 130*180*350mm(Main Device)110*350*200mm(User Display)
Power 24V 5A
SAM SIM Type 6 slots
Dimension 280 x 320 x1000mm
Power 24V 3A
Taxi Validator (Manual type)
Taxi Validator (Manual type) Taxi Validator (Manual type)
Key Features
  • IC card / Magnetic card / RF card all acceptable
  • Android
  • Easy to install
  • Touch Screen
ITEM, Description Top-up device table
ITEM Description
System
  • S5PV210 (Cortex A8, MAX 1Ghz)
  • SDRAM : DDR2 1Gbyte
  • eMMC : 4Mbyte
  • External : Micro SD
OS Android 2.3.3 Ginger Bread
User Interface
  • 854 X 480 Pixel 5" TFT LCD(Electrostatic Touch Panel)
  • 3 Function Buttons
  • Speaker (1W)
  • Buzzer
  • PRINT(2"Thermal )
Connectivity(I/O)
  • Meter : RS-232C
  • LTE : RS-232C
  • GPS : UART (Internal – Chip Option)
  • External PAD : RS-232C
  • BEACON : UART
  • UTIS (Option)
MODEM
  • 3G Modem : RS-232C
  • LTE Modem : USB
RF Card Module RC661(Mifare, ISO 14443 type A/B, ISO18092)
MAGNETIC STRIPE READER
  • ISO7810/ID-1
  • ISO7811-1/2/6
IC CardReader
  • ISO7816 figure2, T=0, T=1 Support
  • EMV Level1, Level2
SAM SIM Type 4 slots
Dimension 166mm(W) X 76mm(L) X 35mm(H)
Power 12V (9V ~ 16V)
Express Bus On Board Device
Express Bus On Board Device Express Bus On Board Device
Key Features
  • Multi-payment method available such as RF type card, Mobile RF chip, Magnetic type card
  • Ticket check through Barcode reader
Bus Validator
ITEM, Description Express Bus On Board Device Bus Validator table
ITEM Description
System
  • Linux OS
  • ARM9 32bit S3C2440 400MHz
  • SDRAM 128MB
  • NOR 8MB
  • NAND 512MB
User Interface
  • 4.3"WQVGA TFT LCD 480 X272
  • Touch screen(option)
  • Indicated LED (RED,GREEN)
  • Speaker (1W X 2ea)
  • Buzzer
Connectivity(I/O)
  • 1 RS-232C Ports
  • 1 USB HOST 1.1 Port
  • 1 Ethernet Port
  • (EXTERNAL CIRCULAR TYPE)
RF Card Module RC531(Mifare,ISO 14443 type A/B)
SAM SIM Type 7 slots
Operation Temp -20℃~60℃
Dimension 232x140x140mm(mounted the cradle)
Power 12V 2A
Bus Driver Console
ITEM, Description Express Bus On Board Device Bus Driver Console table
ITEM Description
System AFC Part BMS Part
  • Linux OS
  • Coretex-A8 S5PV210 1GHz
  • SDRAM 512MB
  • NAND 1GB
  • Linux OS
  • Coretex-A8 S5PV210 1GHz
  • SDRAM 512MB
  • NAND 1GB
  • Micro SD 4GB
User Interface
  • 7.0"WVGA TFT LCD 800 X 480
  • Touch screen
  • 12 Push Buttons
  • Indicated LED (RED)
  • Speaker (1W X 2ea)
Connectivity(I/O)
  • 8 RS-232C Ports
  • 1 USB HOST 2.0 Port
  • 1 Ethernet RJ-45 Port
  • 2 Ethernet Circular Ports
  • 7 GPIO Ports
  • GPS- Ublox6
  • WLAN Dual Band- 802.11a/b/g/n
  • 7 RS-232C Ports
  • 1 USB HOST 2.0 Port
  • 1 Ethernet RJ-45 Port
  • 7 GPIO Ports
  • 1 Communication Modem I/O GSM / WCDMA / GPRS
  • A/V IN/OUT Port
  • (RCA Jack Type)
  • Audio Stereo
  • Video Composite
Dimension 226x148.5x52.8mm
Power 24V, 2A
Printer
ITEM, Description Express Bus On Board Device Printer table
ITEM Description
Print Method Thermal Printing
Print Resolution 384(dot/line)
Print Section 48mm
Paper Size 57mm
Paper TYPE Thermal Paper
Characters per Line 42(10*24type)
Print Speed 150mm/sec, max
Receive Buffer Size 64KB
Communication Type RS232 & USB (38400bps)
Power Input 22V~36V / 3A
Power Consumption In case of output, 100W, max (In case of 20V, 5A)
Lifespan Mechanism 100Km
Auto cutter 1,000,000 CUT
Externals Size 109*180*70mm
